linetype display model-worksheet

Viewing 2 posts - 1 through 2 (of 2 total)
  • Author
    Posts
  • #16137
    shopjoesshopjoes
    Participant

    A dash looks fine in mo0del space but when you are in worksheet space it is scaled as drawing is scaled and does not display properly in worksheet space but fine in model space – i am trying to find option or work around on having linetypes display the same in model space and worksheet space

    If you are familiar with autocad it has an option psltscale that make all linetypes appear in both model space and paper space regardless of scale

    In Envisioneer I do not see how to make same linetype display the same in both model and worksheet space

    what are people doing to get linetypes correct in worksheetworksheet area

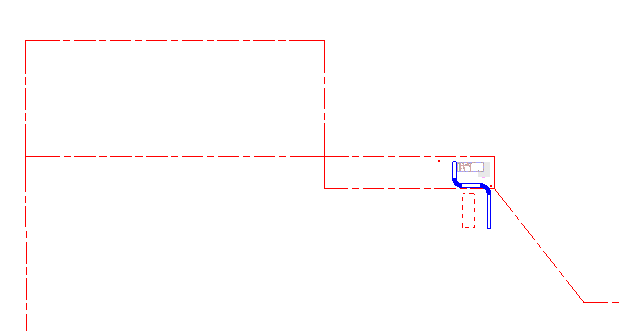

    model space

    #16193
    conweconwe
    Participant

    Appears to me like you are scaling your drawing down to fit on a page, is that right?

    And when you do that it might be messing up your line scale did you go into the property

    setting and trying adjusting the line scale?
